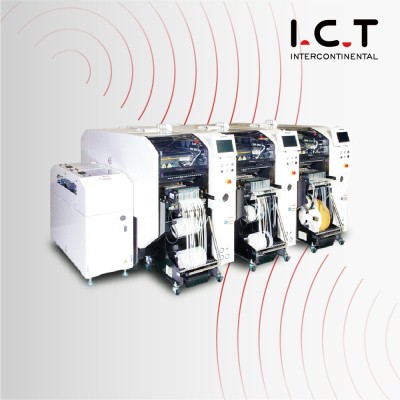

Panasonic NPM-D3 High Precision Chip Mounter
❙ Introduce of Panasonic Chip Mounter
❙ Features & Benefits
Product name | Panasonic Chip Mounter NPM Series SMT Placement | ||||
Model | NPM-D3 | NPM-W2 | NPM-TT2 | NPM-W2S | |
Concept |
Dual-gantry, multi-head, process-driven module |
Dual-gantry, multi-head, process-driven module |
Dual-gantry, multi-head, process-driven module |
Single-gantry, multi-head, process-driven module |
|
Drive system | High-accuracy, low-maintenance, linear-motor driven gantry(s) system | ||||
Component alignment | Multi-recognition digital camera | ||||
Head design options | Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads | ||||
Applicable heads | 16, 12, 8, 2 | 16, 12, 8, 3 | 8, 3 | 16, 12, 8, 3 | |
Board dimensions (Single lane) | L 510mm x W 590mm |
L 750mm x W 550mm 1200mm long PCB opt |
L 510mm x W 590mm |
L 750mm x W 550mm 1200mm long PCB opt |
|
Board dimensions (Dual lane) |
L 510mm x W 300mm L 510mm x W 550mm *1 |
L 750mm x W 260mm L 750mm x W 510mm *1 *2 |
L 510mm x W 300mm L 510mm x W 550mm *1 |
L 750mm x W 260mm L 750mm x W 260mm *1 *2 |
|
Placement accuracy | Chip | ±25μ Cpk ≥ 1.0 *4 | ±25μ Cpk ≥ 1.0 *4 | ±40μ Cpk ≥ 1.0 | ±25μ Cpk ≥ 1.0 *4 |
QFP | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | |
Throughput | Ideal | Up to 84,000 CPH | Up to 77,000 CPH | Up to 36,000 CPH | Up to 38,500 CPH |
IPC9850 | 63,300 CPH (1608C) *3 | 59,200 CPH (1608C) *3 | 8,300 CPH (208 QFP) *3 | 30,000 CPH (1608C) *3 | |
Component range | Min | 03015 microchip *4 | 03015 microchip *4 | 0402 microchip | 03015 microchip *4 |
Max | 100mm x 90mm | 150mm x 25mm | 150mm x 25mm | 150mm x 25mm | |
Height | 28mm | 30mm | 30mm | 30mm | |
Special height | - | 40mm | - | 40mm | |
Insertion force | .5N ~ 50N | .5N ~ 100N | .5N ~ 100N | .5N ~ 100N | |
Feeder capacity | Reels w/ no tray feeder | 68 | 120 | 120 | 120 |
Reels w/ tray tower | 24 | 86 | 86 | 86 | |
Reels w/ twin tower | N/A | 60 | N/A | 60 | |
Reels w/ 2 tray towers | N/A | N/A | 52 | N/A | |
Trays w/ tray tower | 20 | 20 | 20 | 20 | |
Trays w/ twin or 2 tray towers | N/A | 40 | 40 | 40 | |
Facilities | Electric | Voltage: 3 Phase AC 200/220 ±10V; AC 380 400 420 480V ±20V Frequency: 50/60 Hz | |||
2.7KVA | 2.8KVA | 2.5KVA | 2.0KVA | ||
Peak current 30A @ 200V | Peak current 40A @ 200V | Peak current 38A @ 200V | Peak current 22A @ 200V | ||
Pneumatic | .5 ~ .8MPa, 100L/min | .5 ~ .8MPa, 200L/min | .5 ~ .8MPa, 200L/min | .5 ~ .8MPa, 200L/min | |
Mass | 1900kg w/ 2 carts | 2850kg w/ 2 carts | 3090kg w/ 2 carts | 2850kg w/ 2 carts |
