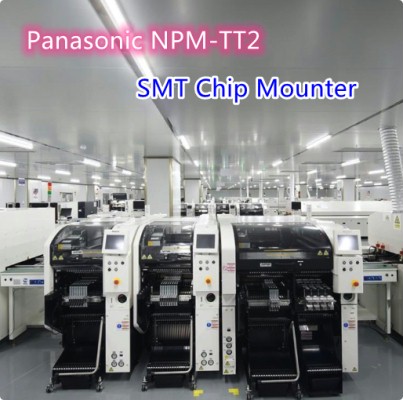

Panasonic NPM-TT2 Twin Tray Assembly Platform
NM-EJM1E
PRODUCT DETAILS
The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.
Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.
Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.
KEY FEATURES
· Compatible with lightweight 8-nozzle or 3-nozzle head V2
· Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range
· Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs
· Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations
· Compatible with CM and NPM-series intelligent feeders & nozzles
PRODUCT SPECIFICATIONA:
Model No. |
NM-EJM1E |
PCB Dimensions (mm) |
PC size |
PCB Dimensions (mm) |
M size |
PCB Exchange Time |
Single-lane mode: 4.0 s (With no component mounted on the reverse side of PCB) |
Electric Source |
3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA |
Pneumatic Source |
Min.0.5 MPa, 200 L /min (A.N.R.) |
Dimensions (mm) * |
W 1,300 [*2] x D 2,798 [*3] x H 1,444 [*4] |
Mass |
2,690 kg |
*Values such as maximum speed may vary depending on operating conditions.
*Please refer to the ‘‘Specification’’ booklet for details.
[*1]: Only for main body
[*2]: 1,820 mm in width if extension conveyors (260 mm) are placed on both sides
[*3]: Dimensions shown are specifications for front/rear tray feeders . Dimensions of specifications for front/rear feeder carts : 2,893 mm
[*4]: Excluding the monitor, signal tower and ceiling fan cover
