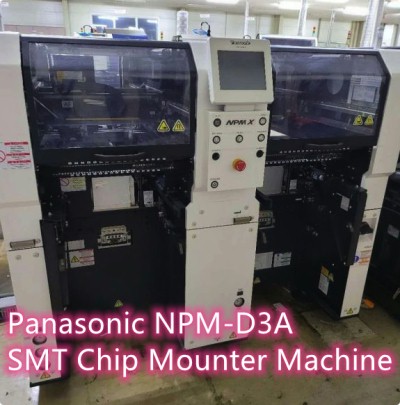

Panasonic NPM-D3A high-speed Module Mounter
NM-EJM6E
PRODUCT DETAILS
The compact dual-beam NPM-D3A offers a reinforced frame, advanced head, and award-winning Multi Recognition Camera improve placement accuracy down to 30um, and capable achieving a maximum CPH of 92,000.
The NPM-D3 is an industry standard building block in high-speed, high volume applications ranging from automotive to industrial to medical. In fact, the vast majority of automotive EMS providers choose Panasonic solutions.
KEY FEATURES
· Flexible board handling system converts to support single- and multiple dual-lane operation modes
· Compact footprint and dual-side operation maximizes factory floor space utilization and scalability
· Swing Nozzle for inserting through-hole devices oriented in packaging different than insertion orientation
· Integrates the industry’s only field-scalable Multi Recognition Camera that combines alignment, thickness, and 3D coplanarity into one time-saving, process-improving step
· Continuous (Sinusoidal) Motion over upward looking camera scanning
PRODUCT SPECIFICATIONA:
|
Model ID |
NPM-D3A |
|
Model No. |
NM-EJM6E |
|
PCB Dimensions (mm) * |
Dual-Lane Mode: L 50 × W50 ~ L 510 × W 300 |
|
PCB Exchange Time * |
Dual-Lane Mode: 0s* *No 0s when cycle time is 3.6 s or less |
|
Electric Source |
3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA |
|
Pneumatic Source * |
0.5 MPa, 100 L /min (A.N.R.) |
|
Dimensions (mm) * |
W 832 × D 2,652 [*3] × H 1,444 [*4] |
|
Mass |
1 680 kg (Only for main body : This differs depending on the option configuration.) |
*Values such as maximum speed may vary depending on operating conditions.
*Please refer to the ‘‘Specification’’ booklet for details.
[*1]: Due to a difference in PCB transfer reference, a direct connection with NPM (NM-EJM9B) / NPM-W (NM-EJM2D) /NPM-W2 (NM-EJM7D) dual lane specs cannot be established.
[*2]: Only for main body.
[*3] : Dimension D including feeder cart
[*4]：Excluding the monitor, signal tower and ceiling fan cover
