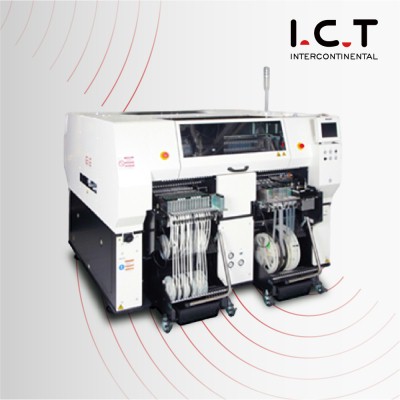

AM100 Single-beam, Single-head Placement
NM-EJM4D
PRODUCT DETAILS:
The AM100 maintains the high standards for capability, flexibility, and reliability customers expect from Panasonic in a cost-effective, incrementally scalable, high-mix SMT solution. Only one machine is required to get production started and it's easy to add more units and/or technologies as demands change.
You'll have the flexibility to prepare the next product while production is running on the AM100 for non-stop changeover and put to use a variety of highly flexible configurations and component supply types. Flexible setup is further enhanced in the AM100 by Feeder Anywhere and Nozzle Anywhere features. Large boards can be processed and advanced features including a component thickness camera, auto support pin exchange, PCB warpage detection, and tray verification are also available.
KEY FEATURES
· Single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm
· Capable of placing large connectors, odd-shaped components, and advanced packaging types such as PoP
· Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series
· Cost-effective and high quality production
PRODUCT SPECIFICATIONA:
Model ID |
AM100 |
Model No. |
NM-EJM4D |
PCB Dimensions (mm) |
L 50 × W 50 to L 510 × W 460 |
Placement Speed |
35,800 cph (0.1006 s/chip), |
Placement Accuracy (Cpk1) |
±40 µm/chip |
Component Supply: Taping * |
(Tape : 4 / 8 mm tape (small reel) ) |
Component Supply: Stick * |
Tape feeder specification : Max. 40 |
Component Supply: Tray * |
Tray feeder specification: Max. 20 |
