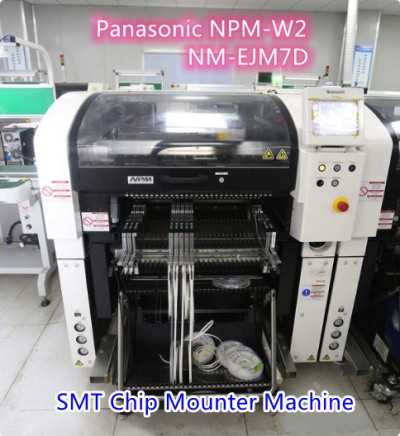

NPM-W2 Versatile Platform

NM-EJM7D/NM-EJM7D-A/NM-EJM7D-D/NM-EJM7D-MA/NM-EJM7D-MD

PRODUCT DETAILS

The NPM-W2 amplifies the original NPM-W capabilities with a 10% throughput boost and 25% more accuracy. It also integrates new innovations like our incomparable Multi Recognition Camera. Combined, these features extend the component range down to the 03015mm microchip, yet preserve capability up to 120x90mm components up to 40mm tall and nearly 6” long (150mm) connectors.

Featuring a revolutionary Multi Recognition Camera that uniquely combines three separate imaging capabilities into a single system: 2D alignment, component thickness inspection, and 3D coplanarity measurement.

KEY FEATURES

· Higher productivity and quality with printing, placement and inspection process integration

· For larger boards and larger PCBs up to a size of 750 x 550 mm with component range up to L150 x W25 x T30 mm

· Higher area productivity through dual lane placement

· Quick-change feeder carts and nozzle banks

· Lightweight 16-nozzle head (for 77,000 CPH) with increased placement accuracy to 25um (cpk ≥ 1.0)

PRODUCT SPECIFICATIONA:

*Values such as maximum speed may vary depending on operating conditions.
*Please refer to the ‘‘Specification’’ booklet for details.
[*1]: Please consult us separately should you connect it to NPM-D3/D2/D. It cannot be connected to NPM-TT and NPM.
[*2]: Only for main body
[*3]: 1,880 mm in width if extension conveyors (300 mm) are placed on both sides.
[*4]: Dimension D including tray feeder: 2,570 mm
Dimension D including feeder cart: 2,465 mm
[*5]: Excluding the monitor, signal tower and ceiling fan cover
