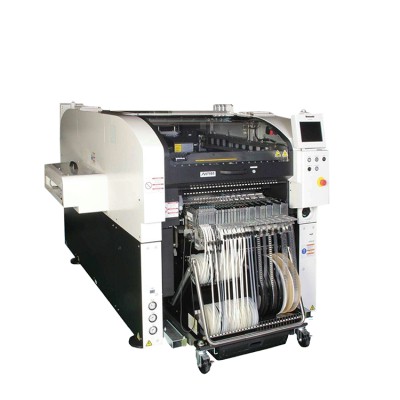

PCB Place and Place Machine NPM-WXS

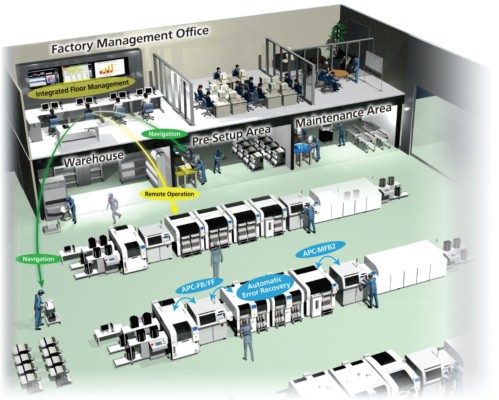

❙ Features of Chip Mounter
| Product name | Panasonic SMT Chip Mounter NPM-WXS | ||||||
| Model | NPM-WXS | NPM-WX | NPM-DX | ||||
| Single-lane mode |
2-position mounting:
L 50mm x W 50mm ~ L 750mm x W 610mm
|
Batch mounting:
L 50mm x W 50mm ~ L 750mm x W 610mm
|
L 50mm x W 50mm ~ L 510mm x W 590mm | ||||
| Dual-lane mode |
Dual transfer (2-position):
L 50mm x W 50mm ~ L 750mm x W 300mm
|
Dual transfer (Batch):
L 50mm x W 50mm ~ L 750mm x W 300mm
|
|||||
|
Single transfer (2-position):
L 50mm x W 50mm ~ L 750mm x W 590mm
|
Single transfer (Batch):
L 50mm x W 50mm ~ L 750mm x W 590mm
|
L 50mm x W 50mm ~ L 510mm x W 300mm | |||||
| Electric source *1 | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA | 3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA | 3-phase AC 200, 220, 380, 400, 420, 480 V 5.0 kVA | ||||
| Pneumatic source | Min.0.5 MPa, 200 L /min (A.N.R.) | Min.0.5 MPa, 200 L /min (A.N.R.) | |||||
| Dimensions | W 1410mm *2 x D 2570mm *3 x H 1444mm *4 | W 1665mm *2 x D 2570mm *3 x H 1444mm *4 | |||||
| Mass | 2660kg *1 | 2740kg *1 | 3600kg *1 | ||||
| Placement head | Lightweight 16-nozzle head V2 c(Per beam) | Lightweight 8-nozzle head (Per beam) | 4-nozzle head (Per beam) | 3-nozzle head V2 (Per beam) | Lightweight 16-nozzle head V2 (Per beam) | Lightweight 8-nozzle head (Per beam) | 4-nozzle head (Per beam) |
| Maximum speed | 43,000 CPH (0.084s/chip) | 23,000 CPH (0.155s/chip) | 8,400 CPH (0.429s/chip) | 9,400 CPH (0.383s/chip) | 46,200 CPH (0.078s/chip) | 24,000 CPH (0.150s/chip) | 8,500 CPH (0.424s/chip) |
| 7,800 CPH (0.462s/QFP feeder) | 7,300 CPH (0.493s/QFP feeder) | ||||||
| 7,100 CPH (0.507s/QFP tray) *8 | 6,350 CPH (0.567s/QFP tray) *9 | 8,000 CPH (0.450s/QFP) | |||||
| Placement accuracy (Cpk≥1) | ±25 μm/chip | ±25 μm/chip | ±20 μm/QFP | ±20 μm/QFP |
±25 μm/
Square chip
|
±25 μm/
Square chip
|
±20 μm/QFP |
|
±40 μm/QFP, 12mm under |
±40 μm/QFP,
12mm under
|
||||||
|
±25 μm/QFP,
12mm ~ 45mm
|
±25 μm/QFP,
12mm ~ 45mm
|
||||||
| Component dimensions (mm) |
0201 chip *6 *7 /03015 chip *6
0402 chip *6 ~
L6 x W 6 x T 3
|
0402 chip *6 ~
L 45 x W 45 x T 12 or L 100 x W 40 x T 12
|
0603 chip ~
L 120 x W 90 x T 40 or L 150 x W 25 x T 50
|
0603 chip ~
L 120 x W 90 x T 40 or L 150 x W 25 x T 50
|
0201 chip *6 *7 / 03015 chip *6 0402 chip *6 ~ L6 x W 6 x T 3 |
0402 chip *6 ~ L 45 x W 45 or L 100 x W 40
x T 12
|
0603 chip ~
L 120 x W 90 or L 150 x W 25
x T 30
|
| Taping | Tape: 4 - 104mm | Tape: 4 - 56mm | Tape: 4 - 104mm | ||||

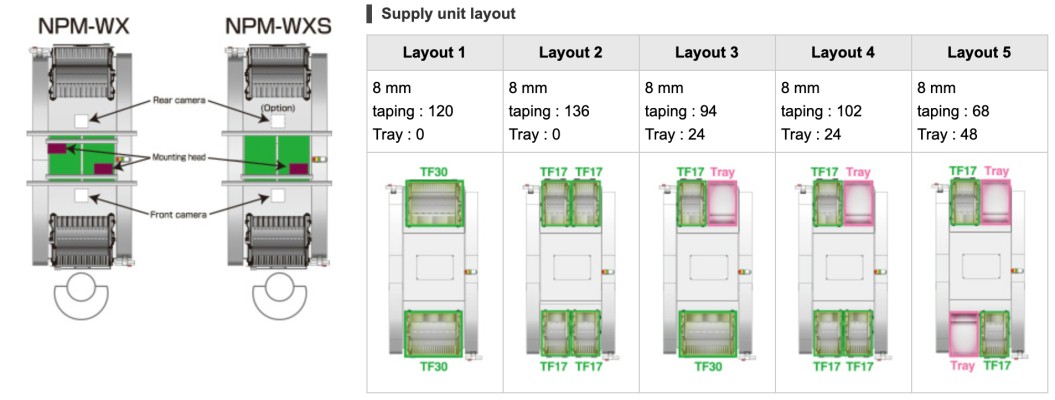

| Front rear 17-slot feeder cart specifications: Max. 136 product types (4, 8mm tape) | Max. 136 product types (4, 8mm tape) | ||||||
| Tray/Stick | One side tray specifications: Max.24, Front-rear tray specifications: Max. 48 Stick Max. 32 (Single stick feeder) | Max. 32 (Single stick feeder) | |||||
