Name:SMT Chip Shooter Machine VM101 Placement Machine
Model:Chip Shooter Machine
Brief:

High-speed. Reconfigurable. Next-generation component support. Elements of an extraordinary solution that supports any kind of production.

Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor.

Content

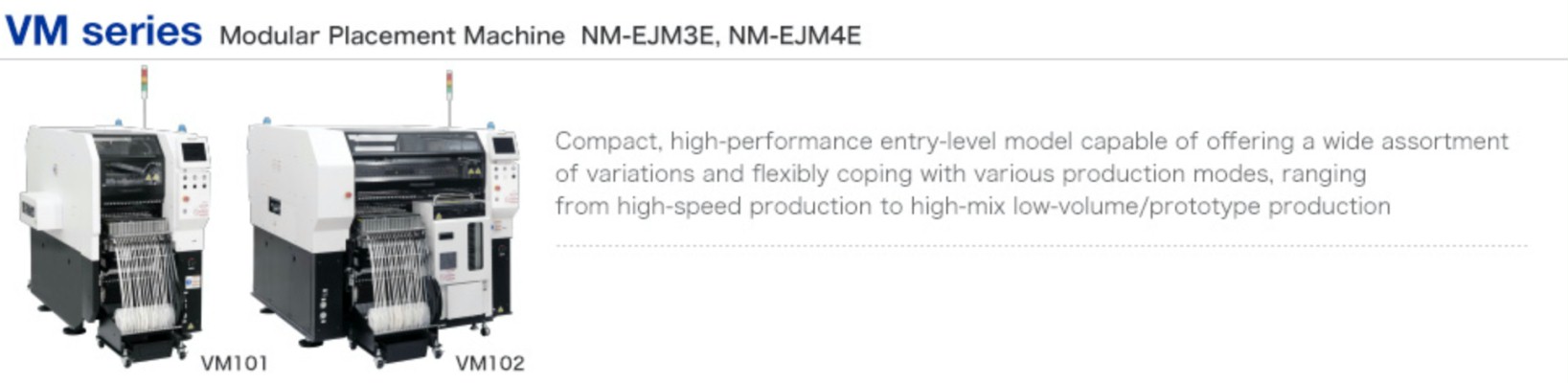

SMT Chip Shooter Machine

Chip Shooter Machine

❙ Features of Panasonic Chip Shooter

1. A wide range of variations to flexibly cope with a wide assortment of production modes
2. Compact size / High performance
3. Production support using system software
❙ Specification of Chip Shooter
Product name SMT Chip Shooter Machine VM101 Placement Machine
Model VM101 VM102
PCB dimensions (mm) L 50 × W 50 ~ L 330 × W 250 (Single-lane)
Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V
1.3 kVA
Pneumatic source 0.5 ~ 0.8 MPa
  100 L /min (A.N.R.) 200 L /min (A.N.R.)
Dimensions (mm) *1 W 830 *2 × D 1 969 *3 × H 1 500 W 1 515 × D 2 070 *3 × H 1 500
Mass 1 500 kg
(Front : Fixed supply unit, Rear : Fixed supply unit without cutting unit)
1 910 kg
(Front : Fixed supply unit plus tray, Rear : Fixed supply unit without cutting unit)
Component
supply
Taping Tape : 4 ~ 56 / 72 / 88 / 104 mm
Max. 80 components *4 (4/8 mm tape) Max.160 components *4 (4/8 mm tape)
Stick Max.20 *5 Max.40 *5
Tray Max.20 Max.20

❙ Company Profile

SMT stencil printer

ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.

We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, Hanwha/Samsung, YAMAHA, PANASONIC brands.

Successful Experience:

Eta's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

❙ ETA SMT Machine Exhibition

Reflow oven

NEPCON

❙ ETA SMT Machine Certificate

ETA Products Certificate

❙ ETA Global Service

SMT PRINTER

❙ Customers' Feedback

Pick n Place Machine

❙ FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.

Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
❙ Packaging
SMT Production Line

❙ Panasonic Chip Shooter Video

If you could not find any similar items you want, you may send some photos to us. because our catalog and website haven't included all of our products.
