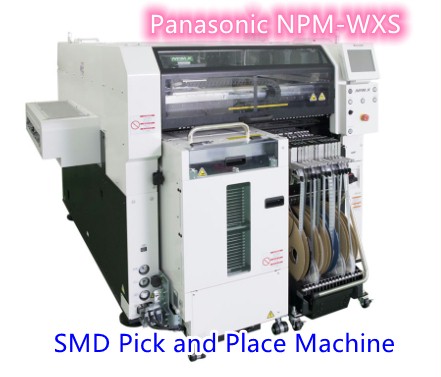

NPM-WX/NPM-WXS Dual- and Quad-beam Modular Placement

NM-EJM9D/NM-EJM2E

PRODUCT DETAILS

The NPM-WX & NPM-WXS single-beam variant is designed around a stiff frame, constructed of durable materials and built to last. With onboard dual-drive linear motors complimented by light and rigid beam architecture, the NPM-WX & NPM-WXS introduces new industry-leading options; Linear servo motors with dual-drive Y and High Resolution linear scales in each motor.

Unparalleled compatibility means the right placement heads that cater to your specific needs. With faster high voltage motor drives, higher precision Θ architecture and precisely forged stainless steel nozzles and adapters, the NPM-WX & NPM-WXS sets new industry standards for handling any mix and any volume.

KEY FEATURES

· Compact footprint - scale production to your factory needs

· Quick-change feeder carts, nozzle banks, and process heads

· AOI information display for closed-loop M2M communication

· 3D Multi Recognition Camera

· High speed placement up to 184,800 CPH

PRODUCT SPECIFICATIONA:

Model ID	NPM-WX
Model No.	NM-EJM9D
PCB Dimensions (mm)	Single-lane Batch Mounting: L 50 × W 50 ～ L 750 × W 610 2-Position Mounting: L 50 × W 50 ～ L 350 × W 610
PCB Dimensions (mm)	Dual-lane Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 300 Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 300 Single transfer (Batch): L 50 × W 50 ~ L 750 × W 590 Single transfer (2-position): L 50 × W 50 ~ L 350 × W 590
Electric Source	3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA
Pneumatic Source *	Min. 0.5 MPa, 200 L /min（A.N.R.) [*1]
Dimensions (mm) *	W 1,410 mm [2] × D 2,570 mm [3] × H 1,444 mm [*4]
Mass	2,740 kg (Only for main body : This differs depending on the option configuration.）
Model ID	NPM-WXS
Model No.	NM-EJM2E
PCB Dimensions (mm)	Single-lane Batch Mounting: L 50 × W 50 ～ L 750 × W 610 2-Position Mounting: L 50 × W 50 ～ L 350 × W 610
PCB Dimensions (mm)	Dual-lane Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 300 Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 300 Single transfer (Batch): L 50 × W 50 ~ L 750 × W 590 Single transfer (2-position): L 50 × W 50 ~ L 350 × W 590
Electric Source	3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA
Pneumatic Source *	Min. 0.5 MPa, 200 L /min（A.N.R.) [*1]
Dimensions (mm) *	W 1,410 mm [2] × D 2,570 mm [3] × H 1,444 mm [*4]
Mass	2,660 kg (Only for main body : This differs depending on the option configuration.）

*Placement tact time and accuracy values may differ slightly depending on conditions.
*Please refer to the "Specification" booklet for details.
[*1]: Only for main body
[*2]: 2,010 mm in width if extension conveyors (300 mm) are placed on both sides
[*3]: Dimension D including feeder cart
[*4]: Excluding the monitor, signal tower and ceiling fan cover
[*5]: Stick feeders cannot be used on the rear feeder cart of NPM-WXS.
