Name:Panasonic NPM-TT2 SMD Pick and Place Machine
Model:Panasonic NPM-TT2 NM-EJM1E
Brief:

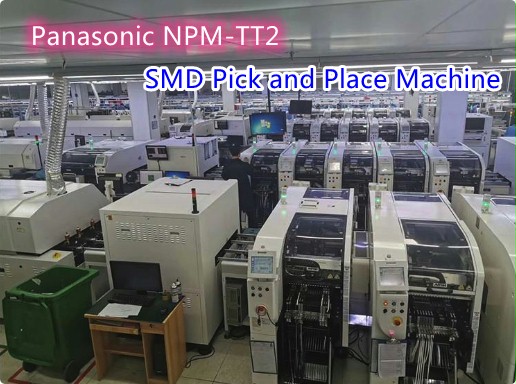

Panasonic NPM-TT2 Pick and Place Machine

Content

Panasonic NPM-TT2 Twin Tray Assembly Platform

NM-EJM1E

PRODUCT DETAILS

The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.

Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.

Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.

KEY FEATURES

· Compatible with lightweight 8-nozzle or 3-nozzle head V2

· Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range

· Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs

· Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations

· Compatible with CM and NPM-series intelligent feeders & nozzles

PRODUCT SPECIFICATIONA:

Model No.

NM-EJM1E

PCB Dimensions (mm)

PC size
Single-lane mode: L 50 x W 50 ~ L 510 x W 590
Dual-lane mode: L 50 x W 50 ~ L 510 x W 300

PCB Dimensions (mm)

M size
Single-lane mode: L 50 x W 50 ~ L 510 x W 510
Dual-lane mode: L 50 x W 50 ~ L 510 x W 260

PCB Exchange Time

Single-lane mode: 4.0 s (With no component mounted on the reverse side of PCB)
Dual-lane mode: 0 s* *No 0s when cycle time is 4.0 s or less

Electric Source

3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA

Pneumatic Source

Min.0.5 MPa, 200 L /min (A.N.R.)

Dimensions (mm) *

W 1,300 [*2] x D 2,798 [*3] x H 1,444 [*4]
[*1]

Mass

2,690 kg
(Only for main body : This differs depending on the option configuration)

*Values such as maximum speed may vary depending on operating conditions.
*Please refer to the ‘‘Specification’’ booklet for details.
[*1]: Only for main body
[*2]: 1,820 mm in width if extension conveyors (260 mm) are placed on both sides
[*3]: Dimensions shown are specifications for front/rear tray feeders . Dimensions of specifications for front/rear feeder carts : 2,893 mm
[*4]: Excluding the monitor, signal tower and ceiling fan cover

Related Products

Panasonic Automatic SMT Pick And Place Machine

High Speed Chip Shooter SMT Pick And Place Machine

Full Automatic Machine SMD Pick And Place

Electronic Product Placement Machine
