Name:Panasonic NPM-DX Pick and Place Machine
Model:Panasonic NPM-DX NM-EJM8D
Brief:

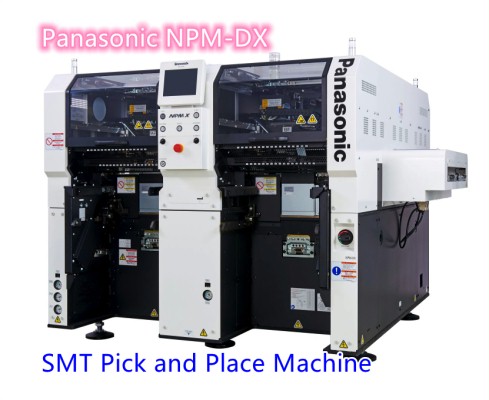

Panasonic NPM-DX Pick and Place Machine

Content

NPM-DX Leading-edge, High Volume Placer

NM-EJM8D

PRODUCT DETAILS

The NPM-DX is Panasonic's next generation of X-Series mounting production concept for Smart manufacturing. The NPM-DX DX boasts a stable operation based on the autonomic function, Autonomous Line Control, allowing for APC system and automatic recovery option.

Realize reduced labor and improved utilization with the Concentrated control feature. This enables floor management system and available remote operation option. Reduced your work variations with improved navigation and automated items such as feeder setup navigation and component supply navigation.

KEY FEATURES

· Standard installation of new functions like Changeover, Component Supply and Error Recovery for better workability and reduced labor needs

· Data creation, the feeder cart (17-slot) , tape feeder and nozzle are compatible with NPM series

· Taking the concept of NPM series Line connection with NPM-D and NPM-TT series is enabled

· Available Automatic Recovery option (Pickup position automatic teach in case of an error)

· Optional Remote operation option minimizes the amount of human-dependent work associated with the NPM-DX

PRODUCT SPECIFICATIONA:

Model ID

NPM-DX

Model No.

NM-EJM8D

PCB Dimensions (mm)

Single-lane mode: L 50 × W 50 ~ L 510 × W 590
Dual-lane mode: L 50 × W 50 ~ L 510 × W 300
*When the long spec. conveyor is selected

PCB Exchange Time

2.1 s ( L 275 mm or less)
4.8 s ( L 275 mm or over to L 460 mm or less)
*When the short spec. conveyor is selected / May differ depending on PCB specifications

Electric Source

3-phase AC 200, 220, 380, 400, 420, 480 V 5.0 kVA

Pneumatic Source *

Min.0.5 MPa、200 L /min(A.N.R.)
[*1]

Dimensions (mm) *

W 1,665 [*2] × D 2,570 mm [*3] × H 1,444 mm [*4]

Mass

3,600 kg
(Only for main body : This differs depending on the option configuration.)

*Placement tact time and accuracy values may differ slightly depending on conditions.
*Please refer to the specification booklet for details.
[*1]: Only for main body
[*2]: 2,265 mm in width if extension conveyors (300 mm) are placed on both sides
[*3]: Dimension D including feeder cart
[*4]: Excluding the monitor, signal tower and ceiling fan cover

Related Products

Panasonic Automatic SMT Pick And Place Machine

High Speed Chip Shooter SMT Pick And Place Machine

Full Automatic Machine SMD Pick And Place

Electronic Product Placement Machine
