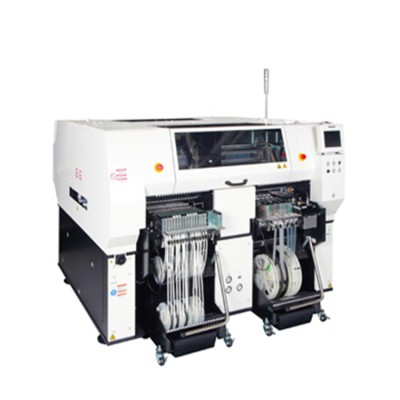

Panasonic AM100 SMT Placement Pick and Place Machine
❙ Introduce of Panasonic Pick and Place Machine
Panasonic's AM100 modular placement SMT pick and place machine features a single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm, large connectors, odd-shaped components, and advanced packaging types such as PoP
❙ Features & Benefits
|Product Name||Panasonic Pick and Place Machine AM100|
|Concept||Scalable single gantry hybrid drive platform|
|Drive system||Highly accurate linear motor hybrid drive|
|Component alignment||Digital color line scan camera, fixed position|
|Head design||14-spindle ultra high flex head|
510 x 460mm (20 x 18") standard
1,200 x 460mm (47 x 18") optional
1,500 x 460mm (59 x 18") optional
|Board thickness||Up to 8mm|
|Placement accuracy||±40 micron Cpk ≥1.0 chip; ±30 micron Cpk ≥1.0 QFP|
|Throughput||Ideal: 35,800 cph; IPC9850: 22,000 cph|
Minimum: 01005 (0402M)
Maximum: 120 x 90mm (4.7 x 3.5") and 150 x 25mm (6 x 1")
Height: Up to 28mm (1.1")
Bumps: 0.15mm diameter, 0.5mm pitch
Reels: Up to 160 reels
Tubes: Up to 78 tubes
Trays: Up to 40 trays
Strip tape: Up to 200 part numbers, optional
Electric: Three-phase AC 200/220V ±10V, AC 380/400/420/480V ±20V 2.0 kVA400V 2 KVA
Pneumatic: Min 0.5 MPa to Max 0.8MPa, 200 L/min (A.N.R.)
Mass: 2370 Kg (Main body with four feeder banks)
Dimensions: W 1,970 x L 2,019 x H 1,500mm
