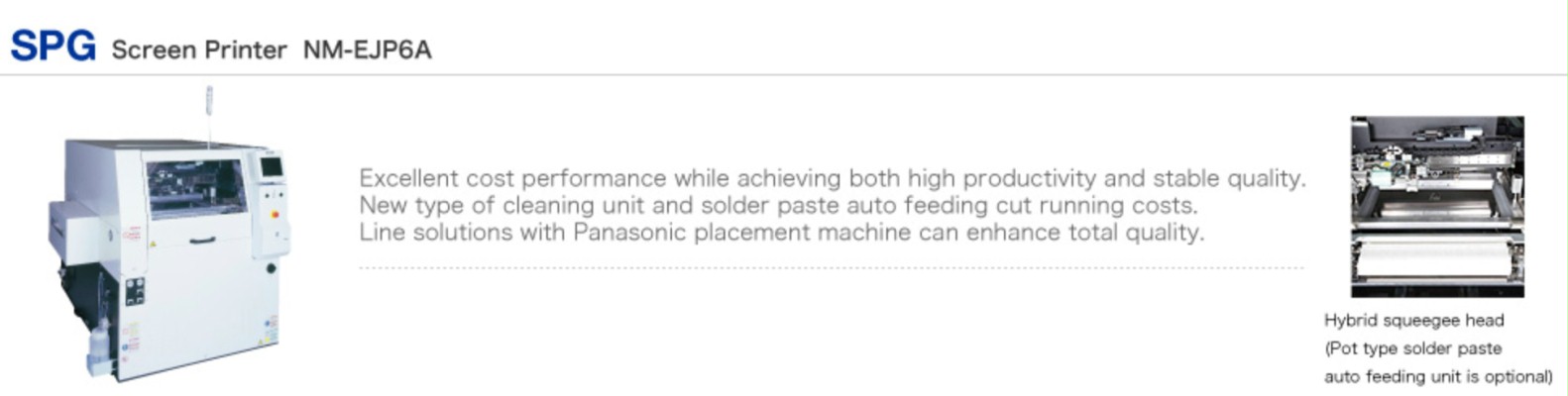

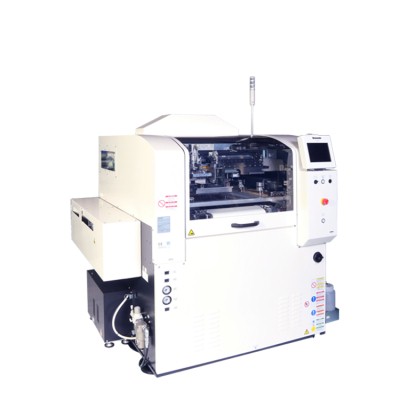

Panasonic Full-auto SMT Solder Paste Screen Printer
❙ Features of Panasonic SMT Printer
|Product name||Panasonic Full-auto SMT Solder Paste Screen Printer|
|PCB dimensions (mm)||L 50 x W 50 to L 510 x W 460|
|PCB exchange time||6.5 s (incl. PCB recognition) (when PCB is L350 x W300 )|
|Repeatability||2Cpk ±5.0μm 6σ (±3σ)|
|Screen frame dimensions (mm)||L 736 x W 736, L 650 x W 550, L 600 x W 550|
|Electric source||1-phase AC 200, 220, 230, 240 V ±10V 1.7 kVA|
30 L/min (A.N.R.), (motor vacuum spec),
400L/min (A.N.R.) (ejector vacuum spec)
|Dimensions (mm)||W 1 580 x D 1 800 x H 1 500|
|Mass||1 500 kg|
*1: PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth.*2: For mask specifications, please see the specification.
*3: Including blower and vacuum pump"Option"
*4: Except for the signal tower and the touch panel.
*5: In case of full options
*Values such as cycle time and accuracy may vary depending on operating conditions.
*Please refer to the ‘‘Specification” booklet for details.
