Name:Panasonic SP-70 PCB Printing Machine High Speed Screen Printer
Model:Panasonic PCB Printing Machine
Brief:

panasonic pcb printing machine,panasonic screen printer spg,panasonic smt screen printer spv-dc,panasonic spv stencil printer,stencil printer,pcb printing machine,solder paste printer,smt stencil printer,solder printer,solder paste printer machine,smt printer,smt screen printer,automatic stencil printer,solder paste screen printer,solder stencil printer,smd stencil printer,semi automatic stencil printer,smt screen printing machine.

Content

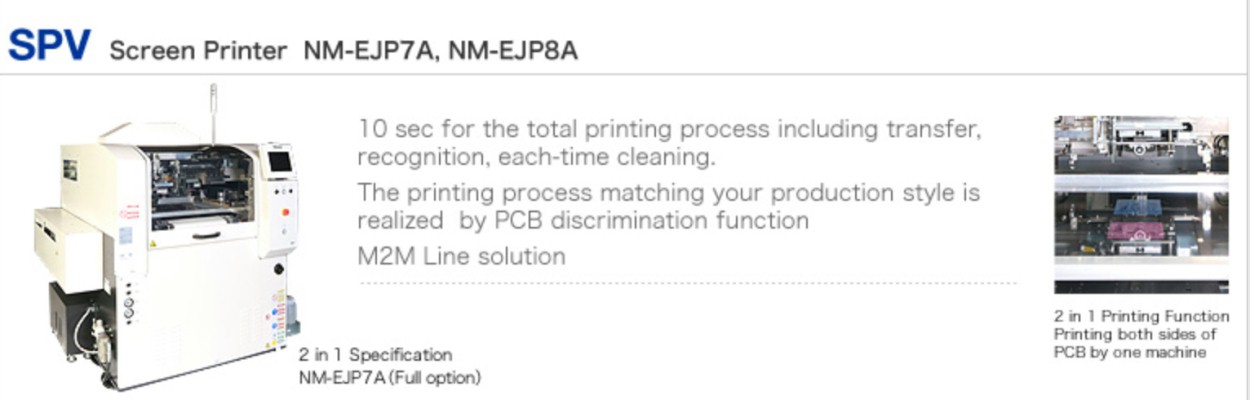

High Speed SMD Screen Printer

Panasonic PCB Printing Machine

❙ Features of Panasonic PCB Printer

1. Lower WIP inventory and reduce changeover time by handling up to 4 unique products simultaneously

2. Minimize capital expenditures by reducing printer investment by 50%
3. Maximize floor space utilization with new hybrid board handling concept
4. Achieve 10 second Average Printing Cycle Time
5. Newly developed automated cleaning unit
6. Multi-stage board handling conveyors
7. Hybrid dual-blade squeegee
❙ Specification of Panasonic SMD Screen Printer
Model ID SPG SP-70 SPV
Model No NM-EJP6A NM-EJP3A NM-EJP7A NM-EJP7A NM-EJP7A NM-EJP7A/8A
Images per Stencil One One One One One One
Input Board Handling Single Single Single Single Dual Single
Output Board Handling Single Single Single Dual Dual Dual
Board Shuttle Upline No No No No Yes No
Board Shuttle Downline No No No Yes Yes Yes
Min Board Size 50 x 50mm 50 x 50mm 50 x 50mm 50 x 50mm 50 x 50mm 50 x 50mm
Max Board Size 510 x 460mm 510 x 460mm 510 x 300mm 510 x 166mm 510 x 300mm 510 x 300mm
Optional Board Size 650 x 460mm 510 x 510mm - - - -
Board Exchange Time 15 sec 13 sec 13 sec 10 sec 13 sec 13 sec
Repeatability +5μm @ 2.0 Cpk +5μm @ 2.0 Cpk +5μm @ 2.0 Cpk +5μm @ 2.0 Cpk +5μm @ 2.0 Cpk +5μm @ 2.0 Cpk
Frame Size: 736 x 736mm X X X X X X
Frame Size: 650 x 650mm X X X X X X
Frame Size: 550 x 650mm X X X X X X
Frame Size: 750 x 750mm     X X X X
Frame Size: 584 x 584mm     X X X X
Power (VAC) 200 - 240 200 200 - 240
Power (Phase) Single Triple Single
Power (Max KVA) 1.7 2.0 2.0 4.0
Air Supply (Mpa) 0.5 0.5 0.5 0.5 0.5 0.5
Footprint 1580 x 1800mm 1680 x 2070mm 1650 x 1517mm 1650 x 3044mm
Height (excluding Tower) 1500mm 1430mm 1500mm 1500mm 1500mm 1500mm
Mass 1500 kg 1730 kg 1550 kg 3000 kg

❙ Company Profile

SMT stencil printer

ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.

We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, Hanwha/Samsung, YAMAHA, PANASONIC brands.

Successful Experience:

Eta's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

❙ ETA SMT Machine Exhibition

Reflow oven

NEPCON

❙ ETA SMT Machine Certificate

ETA Products Certificate

❙ ETA Global Service

ETA Global Service

❙ Customers' Feedback

Customers' Feedback

❙ FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.

Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
❙ Packaging
SMT Production Line
