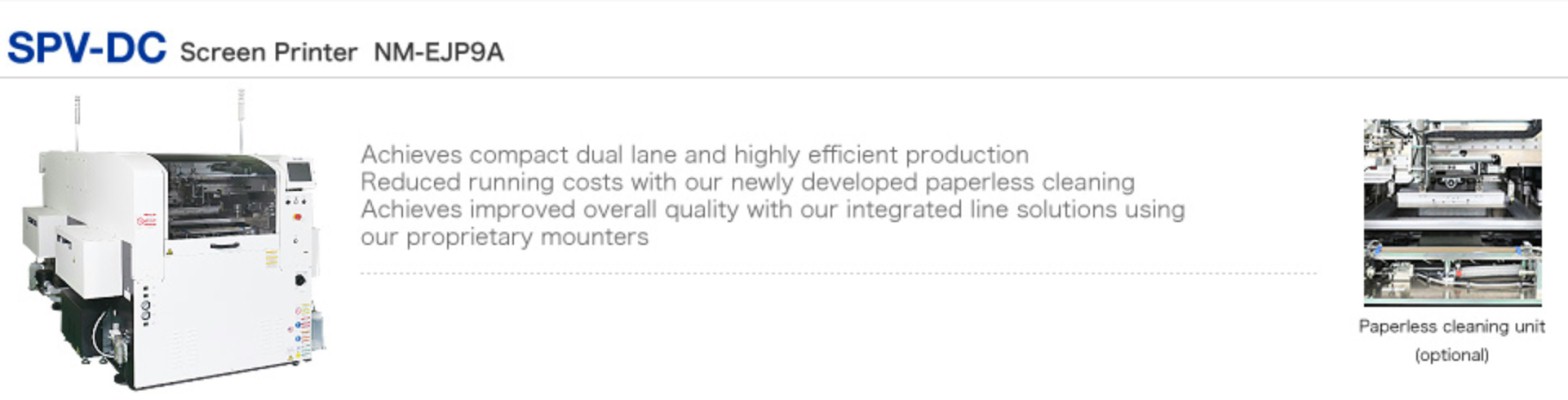

Panasonic SMT Screen Printer SPV-DC
❙ Features of Panasonic SMT Screen Printer
| Product name | Panasonic SMT Screen Printer SPV-DC |
| Model | Panasonic SPV-DC |
| PCB dimensions (mm) | L 50 x W 50 to L 350 x W 300 |
| PCB exchange time |
13.0 s(6.5 s/PCB) *2 Including transfer, positioning, recognition, each-time cleaning. Printing & cleaning conditions:Our recommended conditions (PCB dimensions L 250 x W 165) |
| Repeatability |
2 Cpk ± 5.0 μm 6 σ The repeatability of same PCB Equal to ± 5.0 μm ± 3 σ (or ±2.5 μm ±1.5 σ) |
| Screen frame dimensions (mm) | L 736 x W 736, L 650 x W 550, L 550 x W 650, L 750 x W 750, L 584 x W 584 |
| Electric source | 1-phase AC 200, 220, 230, 240 V ±10V Max. 4.0 kVA |
| Pneumatic source | 0.5 MPa, 560 L / min (A.N.R.) |
| Dimensions (mm) | W 1 650 x D 2 446 x H 1 500 (maximum protusion D 2 528) |
| Mass | 2650 kg*7 |
*1: When using paperless cleaning, dimensions are L50 x W50 – L350 x W250
*2: PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth.*3: For mask specifications, please see the specification.
*4: Including blower and vacuum pump"Option"
*5: When using the mask suction function
*6: Except for the signal tower and the touch panel.
*7: With full options
*Values such as cycle time and accuracy may vary depending on operating conditions.
*Please refer to the "Specification booklet" for details.
