High-speed 15-second clean and print cycle time, every time
Eco-friendly solution for lean manufacturing
Compatible with industry-standard stencils

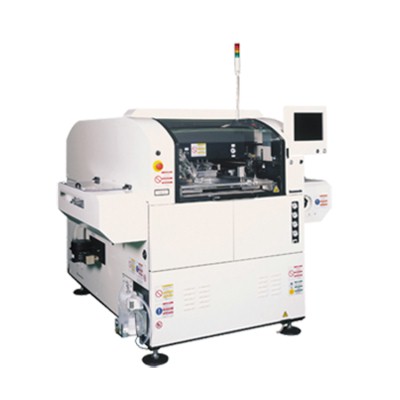

Panasonic Automatic Solder Printer
❙ Features of Panasonic SMT Solder Paste Printer
Features that enable high productivity and stable quality
1. Hybrid squeegee head
Hybrid squeegee head, which has a good track record with our highly functional models, is equipped as standard.
Together with stabilizing rolling solders, printing cycle time is reduced.
2. High-speed mask cleaning
New-type cleaning mechanism reduces paper consumption. Moreover, parallel processing of transfer and cleaning cuts back loss time.
3. 3 conveyors equipped
3 conveyors are equipped as standard for shorter PCB exchange time.
(supported PCB length up to MAX 350mm)
Various options to realize productivity/quality improvement and labor savings
Perforated pot type automatic solder supply
Automation of solder supply allows for labor savings and uninterrupted operation.
Cleaning of spatulas/nozzles is unnecessary
・Reduction of discarded solder
e.g., solder attached on spatulas or inside nozzles
2-pot-type continuous supply
Press-fit of solder becomes possible, allowing fine pitch/through hole printing.
PCB pickup blower (switch type)
Printing transcription is improved through the use of blower to create airflow pathways from metal mask to PCB.
One-touch support pins
Support unit for batch replacement.
While checking on PCB, you can set magnet pins at desired locations.
Automatic mask positioning
Based on PCB data, the Y-directional mask position is automatically registered.
Ｍ2Ｍ Line solution
According to the correction data of shifted printing positions analyzed by solder paste inspection (APC correction data), it corrects printing positions(X ,Y ,θ).
*3D inspection equipment of other companies can also be connected.
* Please inquire with your sales representative for more details
Connect with upper system(LNB,LWS…)
• Automatic changeover
• Component verification(solder/mask/squeegee…)
• Trace data output
*About the specification and system configuration,please refer to the“Specification”for details.
❙ Specification of Panasonic Solder Paste Printer
Panasonic Solder Printer
PCB dimensions (mm)
L 50 x W 50 to L 510 x W 460
PCB exchange time
6.5 s (incl. PCB recognition) (when PCB is L350 x W300 ) *1
*1: PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth.
*2: For mask specifications, please see the specification. *3: Including blower and vacuum pump"Option" *4: Except for the signal tower and the touch panel. *5: In case of full options *Values such as cycle time and accuracy may vary depending on operating conditions. *Please refer to the ‘‘Specification” booklet for details.
