Name:Panasonic SMT Machine NPM-W2S Modular Placement

Model:Modular Placement

Brief:

Panasonic SMT Machine NPM-W2S Modular Placement

High quality smt placement pick n place machine npm-w2s

Panasonic NPM SMT Assembly Platform,ANY-MIX MANUFACTURING PLATFORM SOLUTION FOR YOUR CHANGING, EXPANDING, & EVOLVING ELECTRONIC ASSEMBLY NEEDS.

Content

Panasonic SMT Machine NPM-W2S Modular Placement

Modular Placement

❙ Features & Benefits

1. Directly connectable to NPM-W2

Support for single-/dual-lane transport

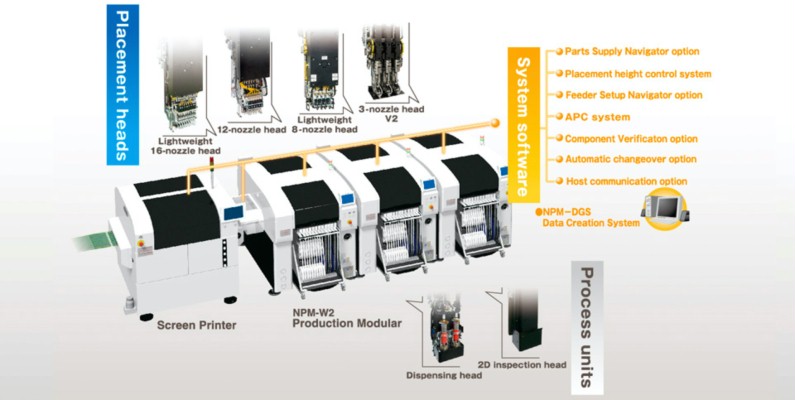

2. Selection of the mounting head according to production form

Selectable from Lightweight16-/12-/Lightweight8-/3-nozzle head V2

3. Mutual compatibility with NPM series

Shared use of the placement head/nozzle, tape feeder and feeder cart

*For details, contact our sales representative.

4. Adoption of 3-nozzle head V2

Capable of a max placement load of 100N.

❙ Specification of Panasonic Placement

Product name		High Quality SMT Placement Pick n Place Machine NPM-W2S
Model		NPM-D3	NPM-W2	NPM-TT2	NPM-W2S
Concept		Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Single-gantry, multi-head, process-driven module
Drive system		High-accuracy, low-maintenance, linear-motor driven gantry(s) system
Component alignment		Multi-recognition digital camera
Head design options		Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads
Applicable heads		16, 12, 8, 2	16, 12, 8, 3	8, 3	16, 12, 8, 3
Board dimensions (Single lane)		L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt	L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt
Board dimensions (Dual lane)		L 510mm x W 300mm L 510mm x W 550mm *1	L 750mm x W 260mm L 750mm x W 510mm 1 2	L 510mm x W 300mm L 510mm x W 550mm *1	L 750mm x W 260mm L 750mm x W 260mm 1 2
Placement accuracy	Chip	±25μ Cpk ≥ 1.0 *4	±25μ Cpk ≥ 1.0 *4	±40μ Cpk ≥ 1.0	±25μ Cpk ≥ 1.0 *4
Placement accuracy	QFP	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0
Throughput	Ideal	Up to 84,000 CPH	Up to 77,000 CPH	Up to 36,000 CPH	Up to 38,500 CPH
Throughput	IPC9850	63,300 CPH (1608C) *3	59,200 CPH (1608C) *3	8,300 CPH (208 QFP) *3	30,000 CPH (1608C) *3
Component range	Min	03015 microchip *4	03015 microchip *4	0402 microchip	03015 microchip *4
	Max	100mm x 90mm	150mm x 25mm	150mm x 25mm	150mm x 25mm
	Height	28mm	30mm	30mm	30mm
	Special height	-	40mm	-	40mm
	Insertion force	.5N ~ 50N	.5N ~ 100N	.5N ~ 100N	.5N ~ 100N

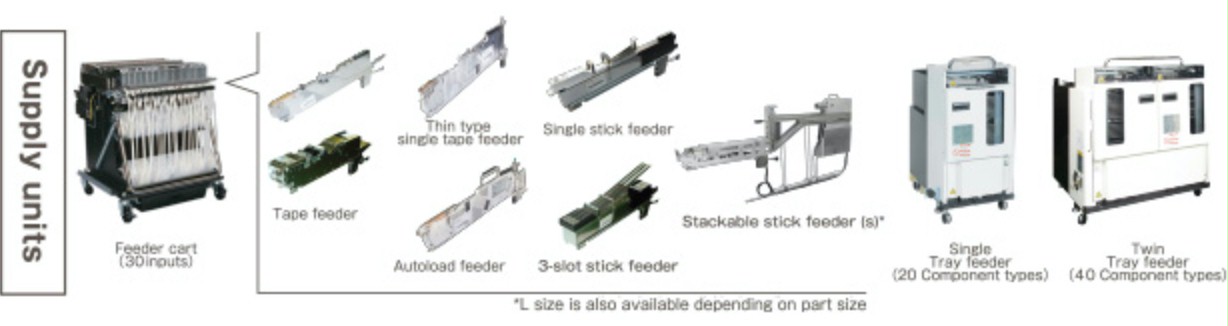

Feeder capacity	Reels w/ no tray feeder	68	120	120	120
	Reels w/ tray tower	24	86	86	86
	Reels w/ twin tower	N/A	60	N/A	60
	Reels w/ 2 tray towers	N/A	N/A	52	N/A
	Trays w/ tray tower	20	20	20	20
	Trays w/ twin or 2 tray towers	N/A	40	40	40
Facilities	Electric	Voltage: 3 Phase AC 200/220 ±10V; AC 380 400 420 480V ±20V Frequency: 50/60 Hz
		2.7KVA	2.8KVA	2.5KVA	2.0KVA
		Peak current 30A @ 200V	Peak current 40A @ 200V	Peak current 38A @ 200V	Peak current 22A @ 200V
	Pneumatic	.5 ~ .8MPa, 100L/min	.5 ~ .8MPa, 200L/min	.5 ~ .8MPa, 200L/min	.5 ~ .8MPa, 200L/min
	Mass	1900kg w/ 2 carts	2850kg w/ 2 carts	3090kg w/ 2 carts	2850kg w/ 2 carts

*Placement tact time and accuracy values may differ slightly depending on conditions.

*Please refer to the specification booklet for details.

*1 Single-lane mode

*2 1200mm long-board option

*3 With High Production Mode active

*4 For 03015 and 0201 metric placement: High Accuracy Mode and special calibration required.
