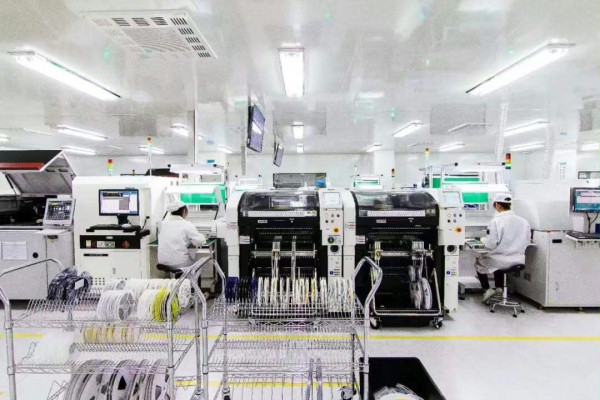

The advantage of the Panasonic smt pick and place machine production line is that the component installation density is high, it is easy to realize automation, improve production efficiency, and reduce costs. The smt pick and place machine production line consists of three processes: solder paste printing, component mounting and reflow soldering. Among them, the Panasonic pick and place machine is an important part of the entire process.
The Panasonic pick and place machine identifies and identifies important components. Machine vision can automatically find the coordinates of these marking center systems, establish the conversion relationship between the Panasonic pick and place machine system coordinate system and the PCB and mounted component coordinate systems, and calculate the accuracy of the placement machine movement. coordinate. The identification, intermediate, detection, installation and other actions of this series of components are automatically completed by the industrial control machine after obtaining the relevant data according to the corresponding instructions.
